This infrared lighting device is a practical tool designed to enhance night vision capabilities.

Equipped with infrared illumination functionality, it provides stable nighttime lighting for cameras, effectively addressing issues such as blurry images and loss of detail when shooting in dark environments.

In practical applications, it can serve as an independent light source, offering concealed illumination for scenarios like nighttime operations and security surveillance. When used with cameras, it ensures clear imaging through supplementary lighting.

Furthermore, through a specific infrared signal transmission and reception mechanism, it enables signal transfer under non-visible light conditions, making it widely applicable in various situations that require concealment and operations in low-light environments.

Name Parameter

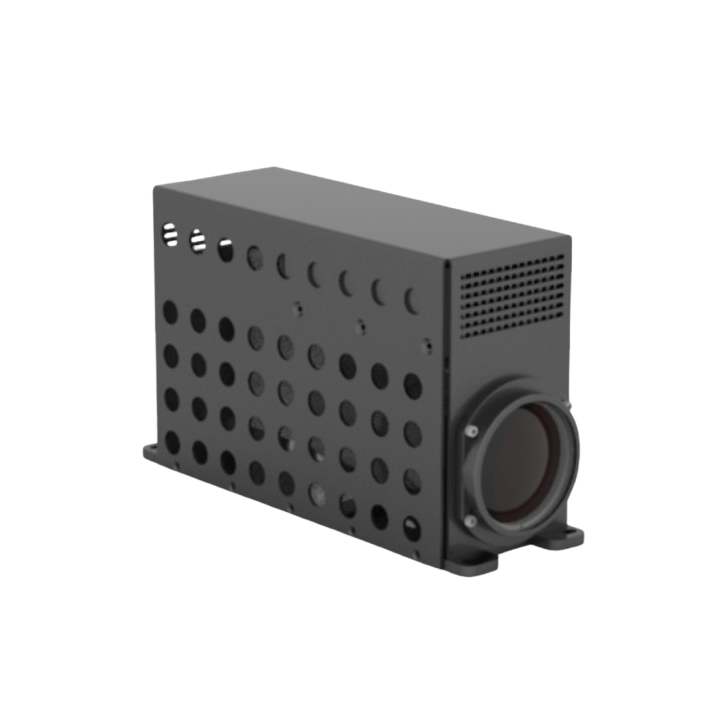

Name Infrared Laser Illuminator
Model PT-FCL-808-3000m
Output Power ≥18W
Effective Operating Distance ≥3000 meters @ small angle
Beam Pattern Clear beam edges, uniform brightness
Center Wavelength 808 ± 5nm
Safety Level Class 4
Safe Distance 100 meters @ small angle
Illumination Angle 0.35 degrees to 31 degrees, motorized zoom;
0.35 degrees: effective distance ≥3000 meters, beam diameter ≥18.5 meters
Zoom Time ≤3 seconds
Operating Voltage DC24V ± 10%
Operating Current <2.6A
Average Power Consumption ≤60W
Peak Power ≤90W
Communication Method RS485/Serial TTL (Baud Rate 9600)
Operating Temperature -38~60°C
Storage Temperature -45~85°C
Dimensions L×W×H=220×72×129mm
Weight <1.5kg
Exit Beam Diameter ≤51mm
Waterproof Not waterproof
Wiring Method Lead-out wire
Heat Dissipation Forced air cooling by fan
