2W-20W Long-Range IR Illumination Lasers

$299.99

2W - 20W Long-Range Infrared Illumination Lasers【IR Illuminator/Night Vision Fill Light/Security Camera IR Supplement】. Long-range infrared illumination lasers emit invisible infrared beams to enhance night vision and situational awareness, paired with night-vision cameras or devices.

7 days

  Quality guarantee

Before we ship your order, we have to prepare your products, do strict quality-control tests.

  Delivery policy

We ship worldwide by Fedex/UPS. The average delivery time is 6-7 days.

  Return policy

JETLASERS offer a refund for most items within 7 days of receipt of shipment.

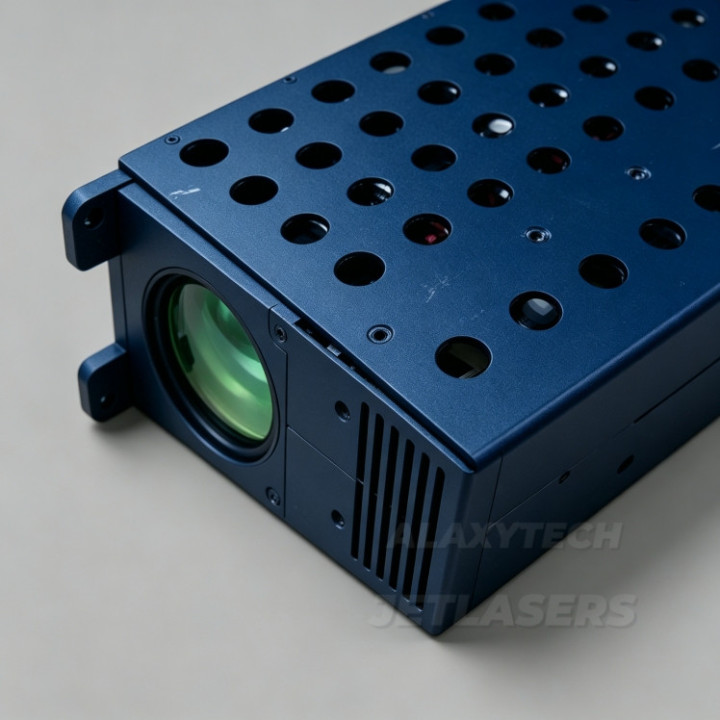

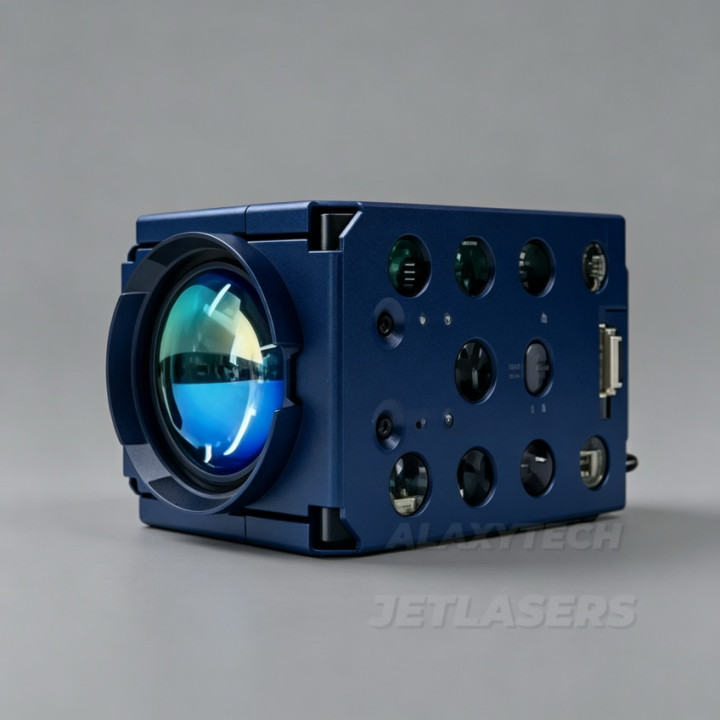

2W - 20W Long-Range Infrared Illumination Lasers【IR Illuminator/Night Vision Fill Light/Security Camera IR Supplement】.

This infrared lighting device is a practical tool designed to enhance night vision capabilities. Long-range infrared illumination lasers emit invisible infrared beams to enhance night vision and situational awareness, paired with night-vision cameras or devices.

Equipped with infrared illumination functionality, it provides stable nighttime lighting for cameras, effectively addressing issues such as blurry images and loss of detail when shooting in dark environments.

In practical applications, it can serve as an independent light source, offering concealed illumination for scenarios like nighttime operations and security surveillance. When used with cameras, it ensures clear imaging through supplementary lighting.

Furthermore, through a specific infrared signal transmission and reception mechanism, it enables signal transfer under non-visible light conditions, making it widely applicable in various situations that require concealment and operations in low-light environments.

Name Parameter
Name Infrared Laser Illuminator
Model PT-FCL-808-3000m
Output Power 2W - 20W
Effective Operating Distance 300 - 3000 meters @ small angle
Beam Pattern Clear beam edges, uniform brightness
Center Wavelength 808 ± 5nm
Safety Level Class 4
Safe Distance 100 meters @ small angle
Illumination Angle 0.35 degrees to 31 degrees, motorized zoom;
0.35 degrees: effective distance ≥3000 meters, beam diameter ≥18.5 meters
Zoom Time ≤3 seconds
Operating Voltage DC24V ± 10%
Operating Current <2.6A
Average Power Consumption ≤60W
Peak Power ≤90W
Communication Method RS485/Serial TTL (Baud Rate 9600)
Operating Temperature -38~60°C
Storage Temperature -45~85°C
Dimensions L×W×H=220×72×129mm
Weight <1.5kg
Exit Beam Diameter ≤51mm
Waterproof Not waterproof
Wiring Method Lead-out wire
Heat Dissipation Forced air cooling by fan

🔒 Security & Surveillance

  • Border/Perimeter Monitoring: Provides long-range infrared lighting for night-vision cameras, enabling 24/7, all-weather surveillance to detect intrusions and unauthorized crossings.
  • Facility Protection (prisons, factories, ports): Delivers clear illumination in low-light/no-light environments, improving video clarity and eliminating blind spots.
  • Traffic & License Plate Recognition: Assists night-time license plate capture and traffic violation detection, avoiding glare interference from vehicle headlights.

🔭 Night Vision & Reconnaissance

  • Law Enforcement & Covert Operations: Supports covert night-time surveillance and tracking without emitting visible light, avoiding exposure.
  • Wilderness Patrol & Search-and-Rescue (SAR): Provides invisible illumination for night patrols and rescue missions, preserving night-vision device performance.
  • Drone Night Vision Enhancement: Powers long-range infrared lighting for UAVs, enabling remote target identification and tracking in dark conditions.

🏭 Industrial & Specialized Use Cases

  • LiDAR & Ranging Systems: Serves as an auxiliary light source for infrared LiDAR and rangefinders, boosting long-range detection accuracy.
  • Infrastructure Monitoring: Enables night-time inspection of pipelines, power lines, and industrial equipment in hazardous or remote locations.
  • Aerospace & Defense Applications: Supports night-time target designation, navigation, and surveillance for military and defense systems.

🌿 Environmental & Wildlife Observation

  • Nocturnal Wildlife Monitoring: Facilitates non-intrusive observation of night-active animals without disturbing their natural behavior.
  • Forest & Border Patrol: Aids anti-poaching and forest security operations with low-visibility, long-range illumination.
