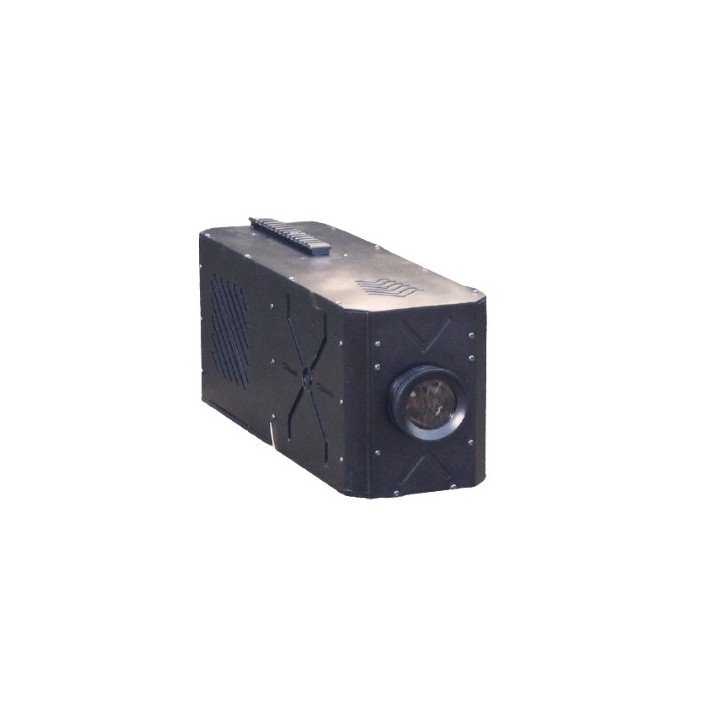

An infrared laser illumination system with high stability, with a selectable power range of 10 - 20W.
We employ a multi-tube LD coupling method to inject the laser beams into the fiber, which are then combined into a single beam.
Due to the unique coupling and superposition technology, the laser beam emitted from the fiber features uniform light intensity and stable power, making it particularly suitable for use as a laser light source for illumination purposes.
Additionally, the multi-tube coupling into a single fiber results in a relatively low thermal load per unit volume, along with high coupling efficiency and cooling efficiency.
Consequently, this product boasts characteristics such as stable output power, a wide operating temperature bandwidth, and high electro-optical conversion efficiency.
| Model | PT-FCL-808-10W-AF |
|---|---|
| Optical Parameters | |
| Center Wavelength @25℃ | 808±5nm |
| Full Divergence Angle (degrees) | 0.5~35 |
| Storage Temperature: | -45℃~70℃ |
| Laser Mode | Circular Spot |
| Electrical Parameters | |
| Operating Mode | Continuous |
| Interface | Power Interface, RS422, IO Interface |
| Mechanical Parameters | |
| Laser Dimensions (mm): | 245 * 70 * 120 |
| Mechanical Dimension Diagram: | Figure 1 |
