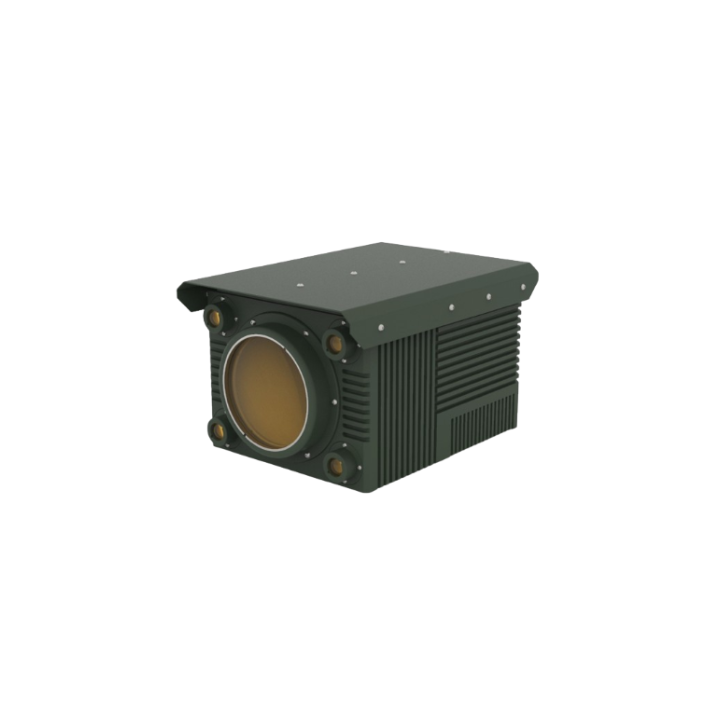

White Laser Warning and Dispersal Device

$5,999.99

White Laser Warning and Dispersal Device combines multiple advanced features in one powerful and practical security solution.

Out-of-Stock

Quality guarantee

Before we ship your order, we have to prepare your products, do strict quality-control tests.

Delivery policy

We ship worldwide by Fedex/UPS. The average delivery time is 6-7 days.

Return policy

JETLASERS offer a refund for most items within 7 days of receipt of shipment.

White Laser Warning and Dispersal Device combines multiple advanced features in one powerful and practical security solution.

This device features:

1. Green laser dazzling and strong dispersal capabilities to effectively deter potential threats

2. White light warning system that exposes hidden dangers

3. Real-time ranging combined with automatic response mechanisms for swift reaction to emergencies

4. Tool-free installation thanks to its secure mechanical locking design

5. Plug-and-play convenience via standard national interface specifications

Practical Applications:

1. Safely dispersing wild animals that threaten personnel in remote areas

2. Effectively managing potential risks in critical infrastructure protection

3. Providing instant alerts to quickly communicate danger signals

This device is an ideal security solution for comprehensive threat prevention and rapid response in various high-risk scenarios.

Parameter	Symbol	Unit	PT - LD - 1307R
			Minimum Value	Typical Value	Maximum Value
White - light Laser Parameters
Luminous Flux	`\varPhi`	lm	3400	3500	-
Operating Current	`I_{op}`	A	5	4.2	3.5
Operating Voltage	`V_{op}`	V	20	24	30
Illuminance at the Center within 25 m	/	lux	≥16000 lux at 25 m for *** small spot	-	-
Divergence Angle	/	Degree	Fixed - focus	-	-
Temperature Feedback at 25°C	/	k`\Omega`	10	-	-
Illuminance at the Center within 3 km	/	lux	≥1.2 lux under standard meteorological conditions at a 70 m diameter	-	-
Illuminance at 15 nautical miles	/	lux	≥0.015 lux under standard meteorological conditions at an angle of 0.2 degrees	-	-
Color Temperature	/	K	≥5000	-	-
Other Overall Parameters
Electrostatic Discharge (ESD)	`V_{esd}`	V	500	-	-
Operating Temperature (Case Temperature)	`T_{op}`	°C	-40	65	-
Storage Temperature	`T_{st}`	°C	-50	70	-
Relative Humidity	RH	%	15	90	-
Packaging Form	/	-	Rectangular prism	-	-
Volume of Laser Module	`V`	mm	Length * Width * Height = 300 * 200 * 190	-	-
Weight of Laser Module	`m`	kg	≤12 kg (subject to the final physical object)	-	-
Shell Color	/	-	To be negotiated by both parties	-	-
Communication Interface	/	-	RS422, 9600	-	-
Locking Method	/	-	Flange - side installation, with the middle ear - shaft passing through the wire	-	-
Overall Operating Voltage	/	V	24 V ± 4 V	-	-

Parameter	Unit	Value/Specification	Notes
Temperature Feedback	KΩ	10 @ 25°C	Resistance value at 25°C ambient temperature
Illuminance at 10km	lux	≥210,000 (Standard meteorological conditions, 50m spot diameter)	Based on 50m beam diameter at 10km distance under standard conditions*
ESD Protection Level	V	500	Electrostatic discharge tolerance
Operating Temperature	°C	-40 to +65	Full performance range
Storage Temperature	°C	-50 to +70	Non-operational storage limits
Relative Humidity	%	15 to 90 (non-condensing)	Ambient humidity tolerance
Enclosure Shape	-	Rectangular prism	Mechanical design specification
Module Dimensions	mm	328 × 225 × 104	Length × Width × Height
Module Weight	kg	≤12	Gross weight including cooling components
Shell Color	-	To be negotiated between parties	Customizable per agreement
Communication Interface	-	RS422, 9600 bps	Data transmission protocol
Mounting Method	-	Flange-side installation with central shaft routing	Mechanical integration method
Power Supply	V/A	24V ±4V / ≤20A	Voltage tolerance and maximum current draw
Cooling Method	-	Forced air cooling (fan-assisted)	Active thermal management
