• This High-intensity Light Warning and Dispersal Device combines the functions of green-light dazzling and powerful dispersal

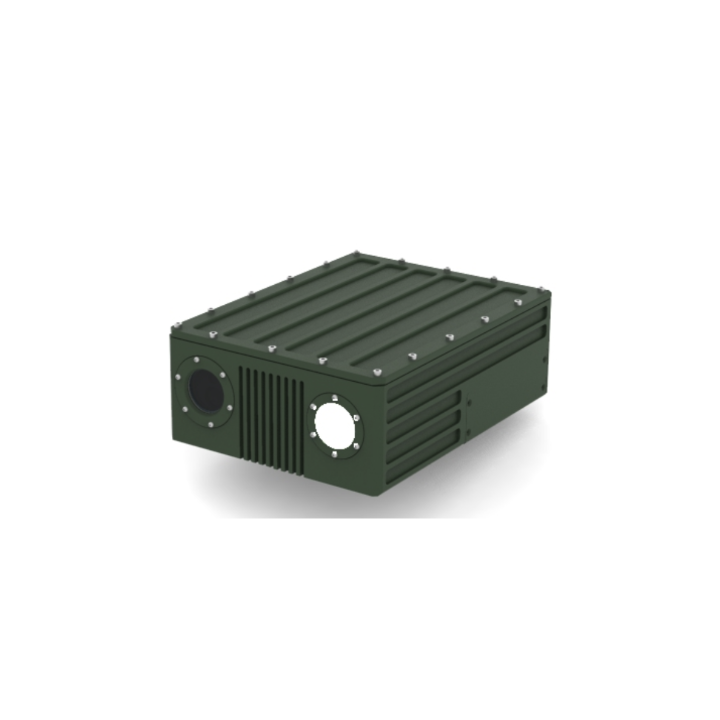

High-intensity Light Warning and Dispersal Device II

$5,999.99

This High-intensity Light Warning and Dispersal Device combines the functions of green-light dazzling and powerful dispersal

Out-of-Stock

  Quality guarantee

Before we ship your order, we have to prepare your products, do strict quality-control tests.

  Delivery policy

We ship worldwide by Fedex/UPS. The average delivery time is 6-7 days.

  Return policy

JETLASERS offer a refund for most items within 7 days of receipt of shipment.

This High-intensity Light Warning and Dispersal Device combines the functions of green-light dazzling and powerful dispersal, posing an effective deterrent to targets; the white-light searchlight alarm makes potential threats nowhere to hide. Combined with a real-time ranging and automatic response mechanism, it can quickly and accurately respond to various emergencies.

The mechanical locking design ensures a simple and convenient installation process. The national standard interface enables plug-and- play functionality, significantly improving the equipment's usage efficiency.

In practical applications, whether it is used to drive away wild animals that threaten personnel safety in the wild, strengthen the defense system of important locations, or achieve immediate alarm in emergency situations, this device can play a stable and reliable role, comprehensively safeguarding the safety defense line.

Parameters at 25°C

Parameter Symbol Unit Minimum Value Typical Value Maximum Value
White Laser Parameters
Total Power P_0 W - 18 19
Extreme High - Temperature Power P_0' W 13 - -
Wavelength \lambda_c nm 638\pm10;525\pm10;450\pm10
R:G:B Power Ratio - - 1:1:1
Threshold Current I_{th} A - 0.5 -
Operating Current I_{op} A 8.4 7 5.7
Operating Voltage V_{op} V 20 24 30
Center Illuminance at 25 m / lux \geq15000\ lux@25m@minimum\ angle
Divergence Angle / Degree 0.2° to 8°
Temperature Feedback at 25°C - KΩ - 10 -
Center Illuminance at 3 km / lux \geq1.9\ lux@standard\ meteorological\ conditions@50m\ diameter
Center Illuminance at 15 km / lux \geq0.4\ lux@standard\ meteorological\ conditions@0.2°
Green Laser Parameters
Power (cw) P_0 W - 20 22
Extreme High - Temperature Power P_0' W 15 - -
Wavelength \lambda_c nm 525\pm10
Threshold Current I_{th} A - 0.5 -
Operating Current I_{op} A 11.5 9.2 7.5
Operating Voltage V_{op} V 20 24 30
Center Illuminance at 25 m / lux \geq500000\ lux@25m@0.3°
Divergence Angle / Degree 0.2 - 3°

Optical Performance

Parameter Symbol Unit Min Typ Max Notes
Illuminance at 10 km center / lux ≥21 - - Under standard meteorological conditions (50 m spot size)
Parameter Symbol Unit Min Typ Max
Ranging Range - m 5 - 1000
Ranging Accuracy - m - 0.5 -
Zoom Time - s - <5 -
Spot Size - m 1.6 - 2.2

Environmental & Electrical Specifications

Parameter Symbol Unit Min Typ Max Notes
ESD (Vesd) - V - - 500 Electrostatic Discharge withstand voltage
Operating Temperature Top °C -40 - 65
Storage Temperature Tstg °C -50 - 70
Relative Humidity RH % 15 - 90
Enclosure Color - - - - Negotiated between parties
Laser Module Dimensions V mm - 328×225×104 Long rectangular prism
Laser Module Weight m kg - ≤12 -
Communication Interface - - - RS422, 9600 baud
Mounting Method - - - Flange-side installation, central shaft alignment
Operating Voltage - V 24 ±4 -
Operating Current - A - ≤20 -
Cooling Method - - - Forced air cooling with fan
