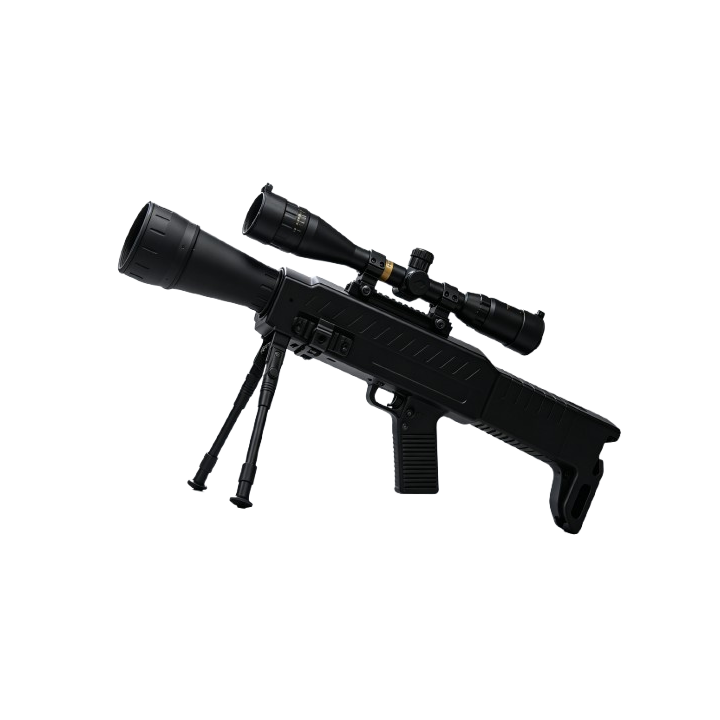

Shooter Series: Laser Ignition Rifle

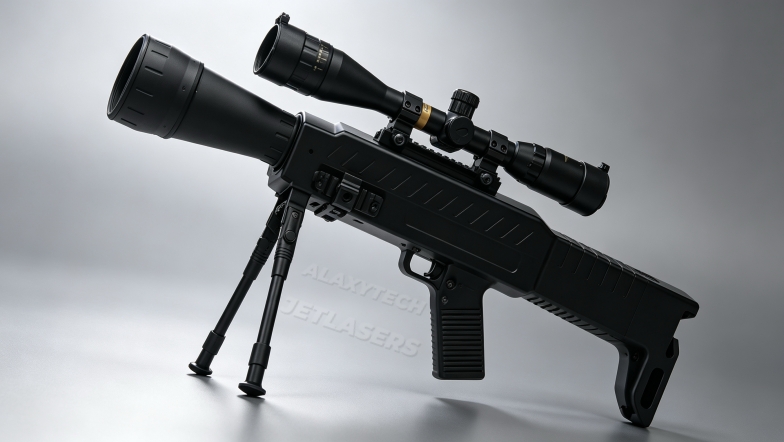

This fiber-coupled, long-range laser ignition rifle is a professional non-contact thermal ablation/ignition system, engineered for safe, remote handling of high-risk scenarios such as unexploded ordnance (UXO) disposal, oil/gas emergency ignition, and power line obstacle removal.

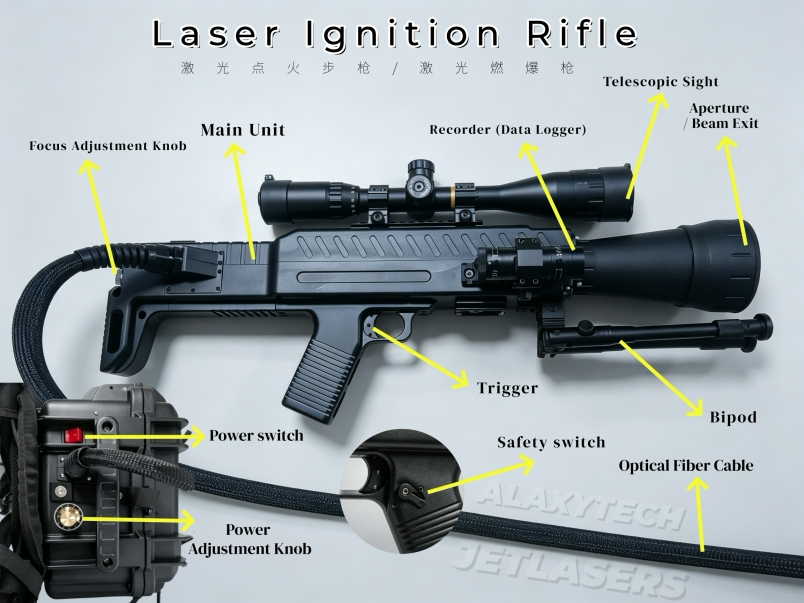

 🔍 Key Components & Their Functions

| Component | Core Function |

|-----------|---------------|

| Focus Adjustment Knob | Adjusts the laser beam’s focal length to control spot size, optimizing energy concentration for targets at different ranges (50–500m typical). |

| Main Unit | The central mechanical and optical assembly, housing the beam collimation and aiming systems. |

| Telescopic Sight | High-precision optical aiming system for long-distance target alignment, ensuring the laser beam hits the intended point. |

| Recorder (Data Logger) | Integrated video/data recording module to capture the operation process for compliance, review, and analysis. |

| Aperture / Beam Exit | The laser emission port, fitted with protective optics to deliver the focused high-energy beam. |

| Trigger | The control switch to initiate laser emission, often paired with safety interlocks. |

| Bipod | Detachable support for stable aiming during long-range operations, minimizing hand tremor. |

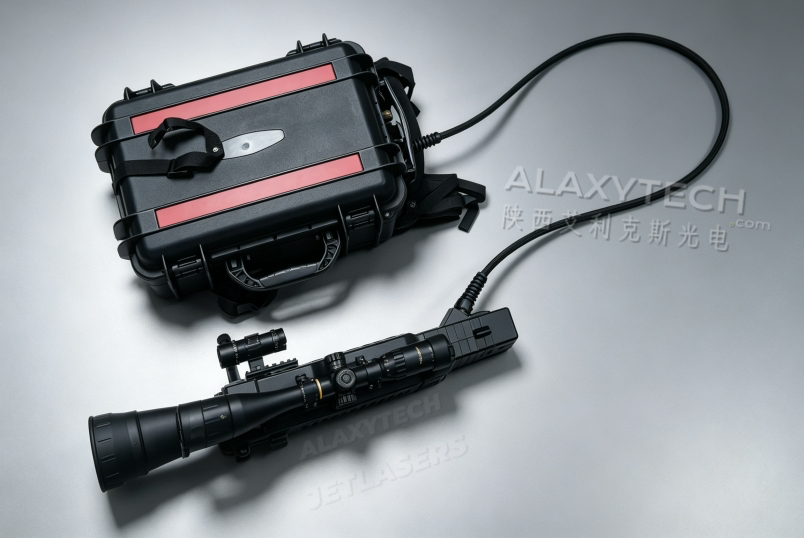

| Optical Fiber Cable | Transmits high-power laser from the backpack unit to the rifle, physically separating the operator from the heat/power source for enhanced safety. |

| Safety Switch | A critical safety lock to prevent accidental laser discharge. |

| Power Switch | The main power control for the backpack laser unit. |

| Power Adjustment Knob | Allows adjustment of the laser’s output power, adapting to different target materials and ignition requirements. |

⚙️ Working Principle

1.  Energy Delivery: The backpack-mounted high-power laser source generates the beam, which is transmitted via the rugged optical fiber to the rifle’s main unit.

2.  Precision Aiming: The telescopic sight and focus adjustment knob align the laser beam onto the target, ensuring maximum energy concentration.

3.  Controlled Emission: After disengaging the safety switch, the operator presses the trigger to fire the laser. The focused beam creates extreme heat (thousands of degrees Celsius) at the target point, enabling controlled ignition, thermal ablation, or detonation.

---

 🎯 Core Applications

- EOD & UXO Disposal: Remotely detonates unexploded ordnance, IEDs, and suspicious devices from a safe distance (200–500m), eliminating direct contact risk.

- Oil & Gas Emergency Response: Safely ignites leaking gas/oil during well blowouts to prevent explosions and toxic gas spread.

- Power Line Maintenance: Burns off foreign objects (kites, plastic films, branches) on high-voltage lines without requiring power outages.

- Firefighting & Forestry: Ignites controlled burns and firebreaks to manage wildfires from a safe zone.

 ✅ Key Advantages

- Operator Safety: The fiber-coupled design keeps the laser source away from the user, allowing operations in high-risk environments from hundreds of meters away.

- Precision & Control: Adjustable power and focus enable precise targeting and controlled energy delivery, minimizing collateral damage.

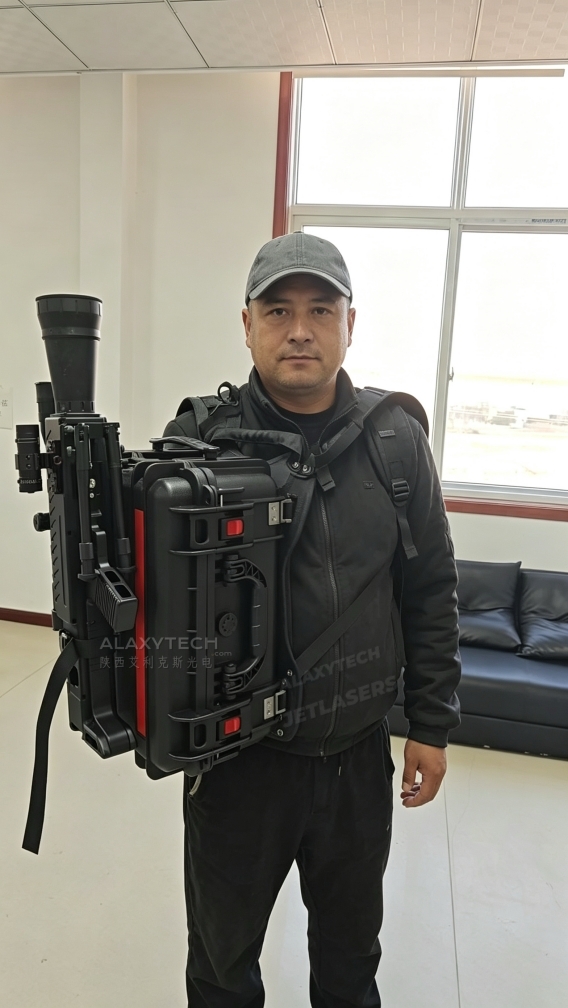

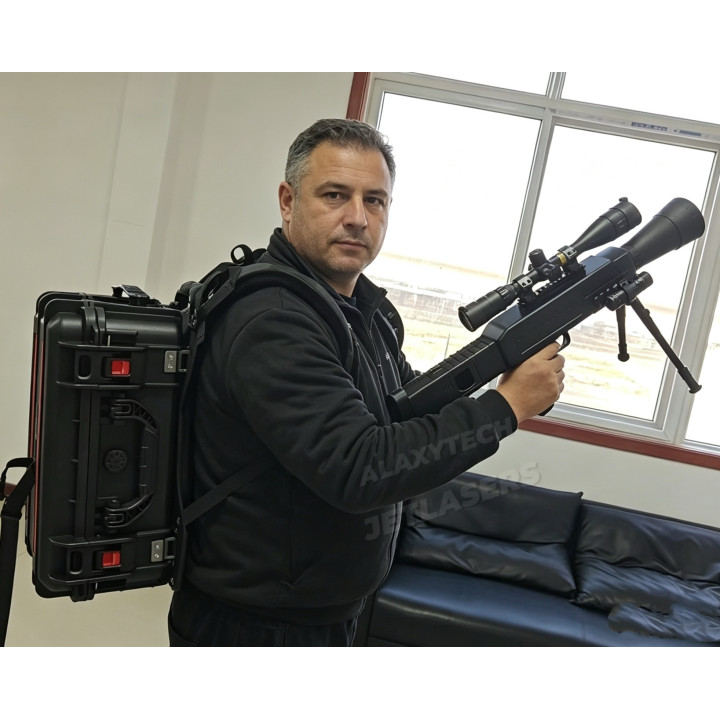

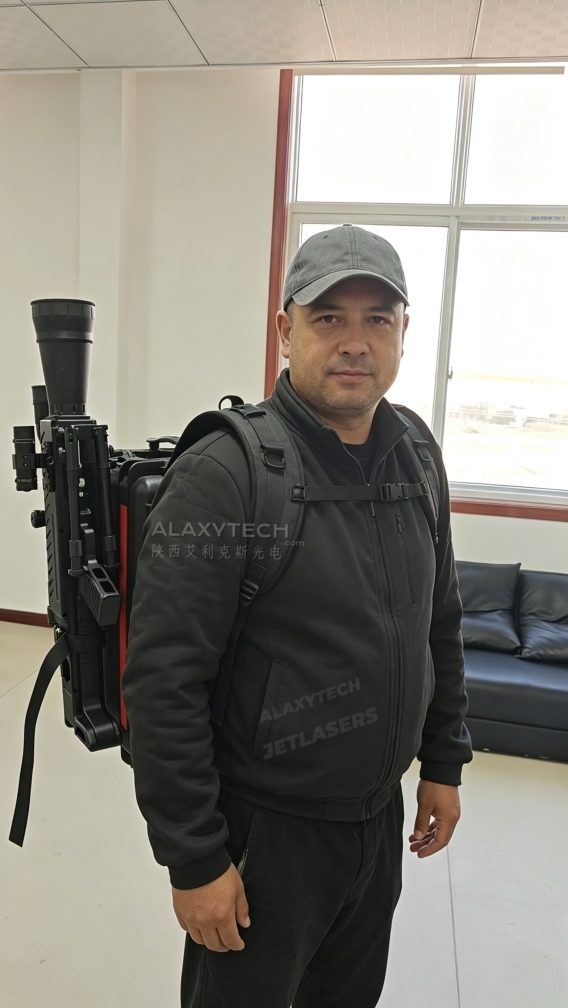

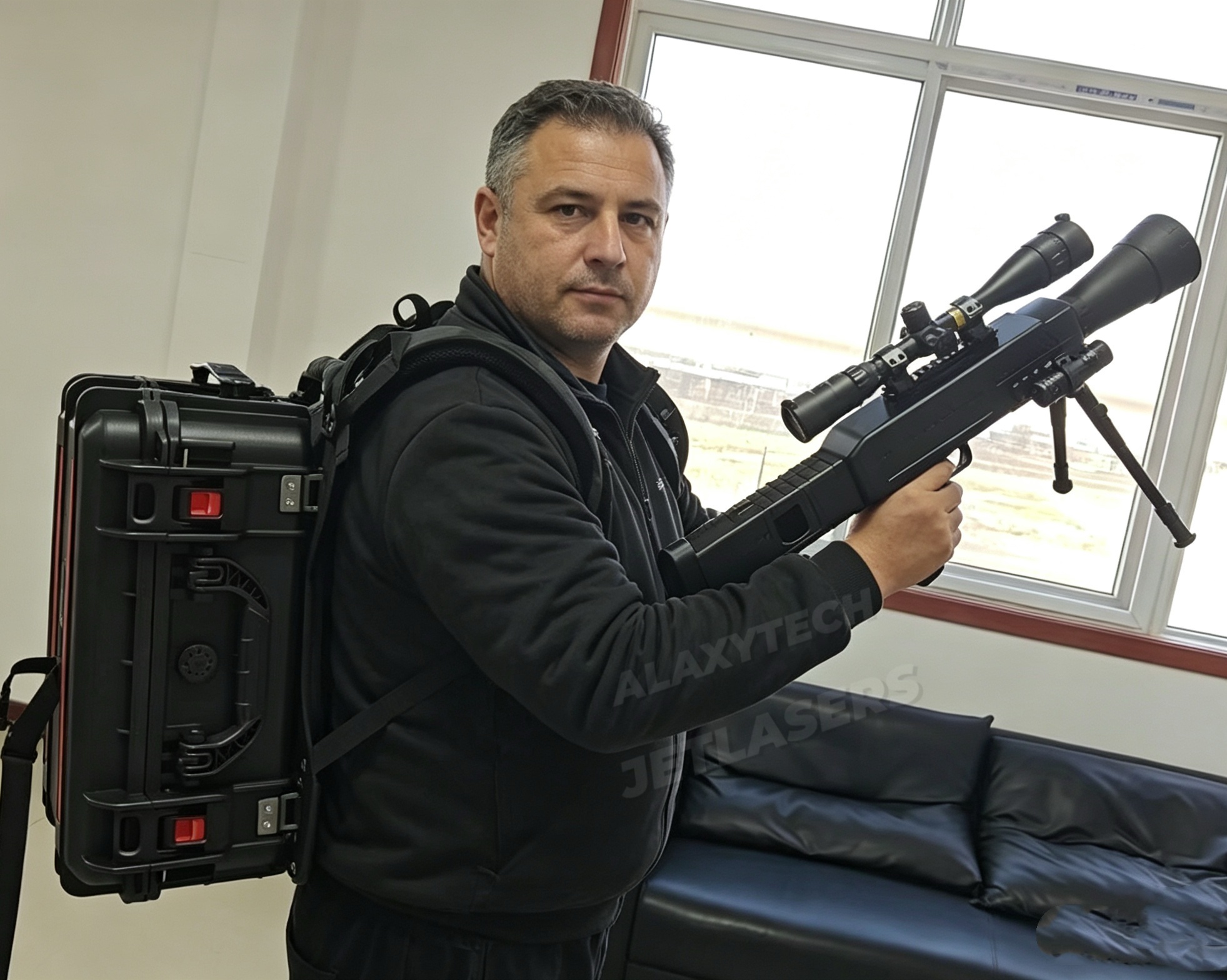

- Portability: The backpack configuration and lightweight rifle design allow for easy deployment in field conditions.

- Traceability: The built-in recorder provides a complete log of operations for post-incident analysis and compliance.
