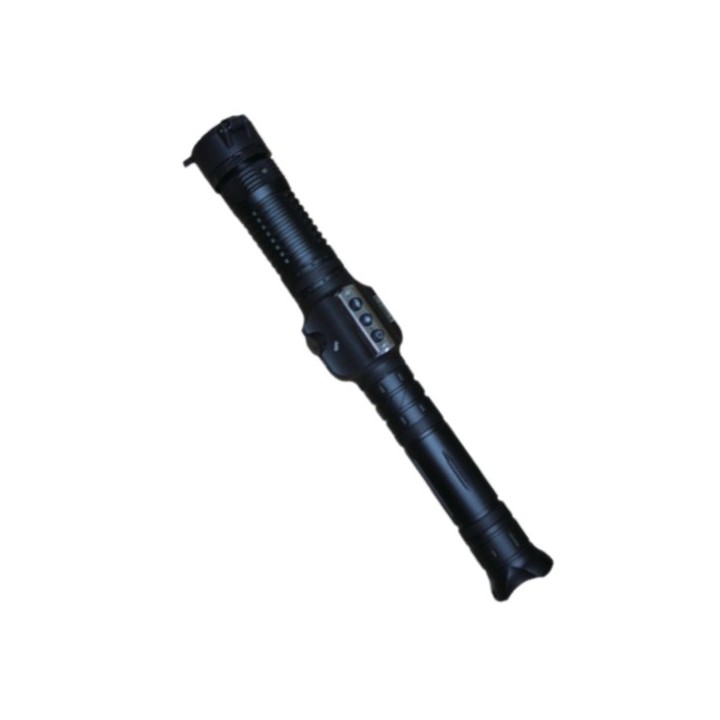

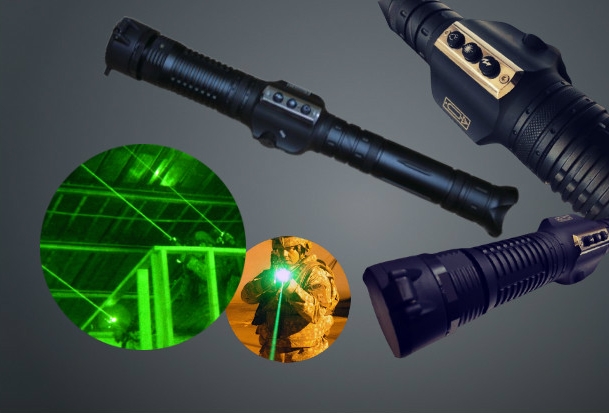

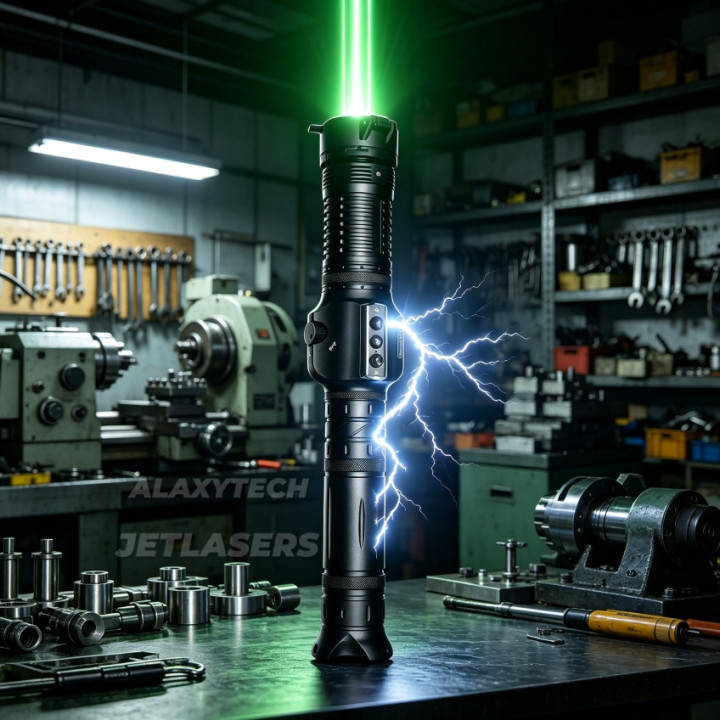

The YAMATAKA series laser dazzler, a three-in-one device integrating illumination, dazzling, and electric shock functions, is an innovative piece of equipment produced by Shaanxi Alex Optoelectronics.

It combines laser dazzling, high-intensity illumination, and electric shock capabilities, aiming to provide users with comprehensive response capabilities to meet the demands of diverse and complex scenarios.

In terms of laser dazzling, the device employs high-energy lasers of specific wavelengths, such as the commonly used 532nm green laser. After homogenization treatment by the optical system, the laser exhibits excellent uniformity, ensuring safe and stable power density of the light spot when irradiating targets.

When acting on the visual system of the target, it can cause temporary blindness, effectively deterring psychological responses and disrupting actions. It plays a crucial role in tasks such as counter-terrorism and stability maintenance, riot control and emergency response, and arrest and search operations, enabling law enforcement officers or security personnel to quickly gain control of situations and mitigate potential risks when facing dangerous circumstances.

The high-intensity illumination function is realized by a high-power LED light source paired with an aspherical plano-convex lens, featuring notable characteristics of high brightness and excellent directivity.

Whether for night patrols, operations in dark environments, or as a warning light source, it can provide sufficient and clear illumination. The illumination modes are diverse, meeting the demands for light intensity and patterns in different scenarios. For instance, the high-beam mode is used for long-distance illumination, the low-beam mode for close-range viewing without causing disturbance, and the strobe mode can disrupt the enemy's vision, rendering them incapable of targeted actions.

The electric shock function serves as a powerful response measure in emergencies, generating an instantaneous discharge voltage sufficient to instantly numb and incapacitate adversaries. The electric shock button is strategically positioned for quick and easy operation, ensuring that users can respond swiftly in critical moments. Pressing the button releases a high-voltage electric shock, effectively deterring threatening behavior and safeguarding the user's safety.

This three-in-one laser dazzler has undergone rigorous environmental testing, including GJB150 tests for rain, humidity, salt spray, vibration, and drop resistance. It can operate normally in extreme temperature environments ranging from -40℃ to 50℃, demonstrating stable and reliable performance and adaptability to various harsh conditions.

Whether for military and law enforcement operations, security patrols, or personal self-defense in the face of danger, the three-in-one laser dazzler, with its powerful integrated functions, serves as a reliable protective companion, providing users with robust safety assurances.

Optical Parameters

• Wavelength: 525 ± 10 nm

• Power (at room temperature): > 1000 mW

• Operating mode: CW (Continuous Wave) / TTL (Trigger - Controlled)

• Focus adjustment: Yes

• Beam pattern: Circular

• Repetition frequency: 8 Hz; other frequencies can be customized

• Beam divergence angle: 2 - 10 mrad

• Beam waist diameter: ~ 2 mm (at the output aperture)

• Cold - start warm - up time: < 2 s

• LED illumination: 600 lm

• Number of LED beads: 3

• Illumination mode: 5 levels

• Operating temperature range: - 40℃ to 60℃ (Custom requirements are available)

• Humidity range: 10% - 90%

• Storage temperature range: - 40℃ to 70℃

• Laser head cooling: Natural convection cooling

• Performance in extreme temperatures: Can operate at more than 80% of the nominal power when powered by a fully - charged battery

Electrical Parameters

• Electric shock voltage: 40,000 volts

• Electric mode: Pulse

• Power supply: 4.2 V lithium - ion battery

• Battery type: 1 x 18350 / 26350

• Battery life: Continuous operation for 30 minutes

Mechanical Parameters

• Overall dimensions (L × W × H): 330 × 45 × 35 [Unit assumed to be mm; please confirm]

• Weight: 683 g

• Material: Aviation - grade hard aluminum 6061 T6 + brass
